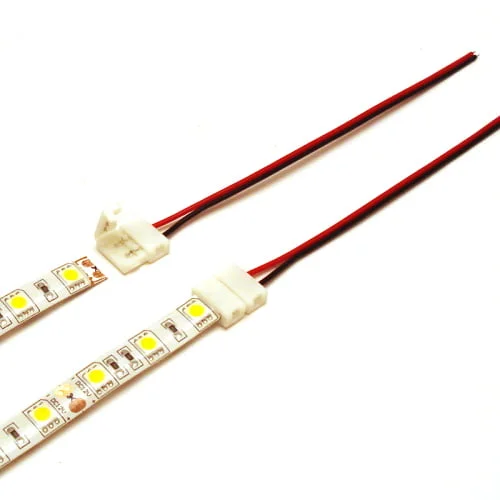

LED Strip Power Lead Connector 10mm 2 Pin

(3 customer reviews)

This connector is designed to clip onto the end of our single colour 10mm LED strip to allow it to connect with a 12/24V power supply. The LED strip light must be 10mm wide to use this connector. Before this connector can be used, gel waterproof coatings must be removed 7mm from the end of the LED strip. The LED strip can then slide inside the connector, passing under the metal arms. Ensure the arms are pushing down onto the copper contacts of the LED Strip. Then close the connector cover, ensuring the teeth clamp directly onto the circuit board of the LED strip not the gel coating.

This connector can be used with our Nano Tech LED Strip providing the thin waterproof coating is removed from the top of the copper terminals first. This can be done using a sharp blade or fine sandpaper.

This connector cannot be used with LED Strips with more than 60 LED/m, due to the high density of LEDs.

This connector is approximately 150mm long.

This connector is only suitable for powering up to 5m of LED strip. To power longer lengths a soldered connection is required.

£1.76excluding VAT

SKU: WIR-INP-MONO-10MM Categories: ,

Additional information

Weight0.2 kg

3 reviews for LED Strip Power Lead Connector 10mm 2 Pin

  1. john kitchingman

    Item as advertised, good price, arrived quickly, well wrapped and it does the job.\r\nWould use LED Lighthouse again.

  2. Nicholas Campbell (verified owner)

    Easy to fit and works well, but check the cable polarity, as the red is not always positive!

  3. Philip Bickford Smith (verified owner)

    Great product. Managed to get the polarity wrong on the first attempt at connecting, and should have read the webpage first. Very bright
